PGVIP — Auto failover to standby PostgreSQL server
Tool is described in more detail on a separate website pgvip.org

PGVIP - auto failover service from master to standby PostgreSQL database using virtual (floating) IP address

The service is installed on one server, which is a single point of failure (example, nginx proxy), or on any two servers (hereinafter referred to as web servers). There is no need to install anything on the database servers; the web server connects to them via ssh and executes commands from the configuration file. Administrator performs initial setup of the standby database and reverse switch manually.

Failover schemas:

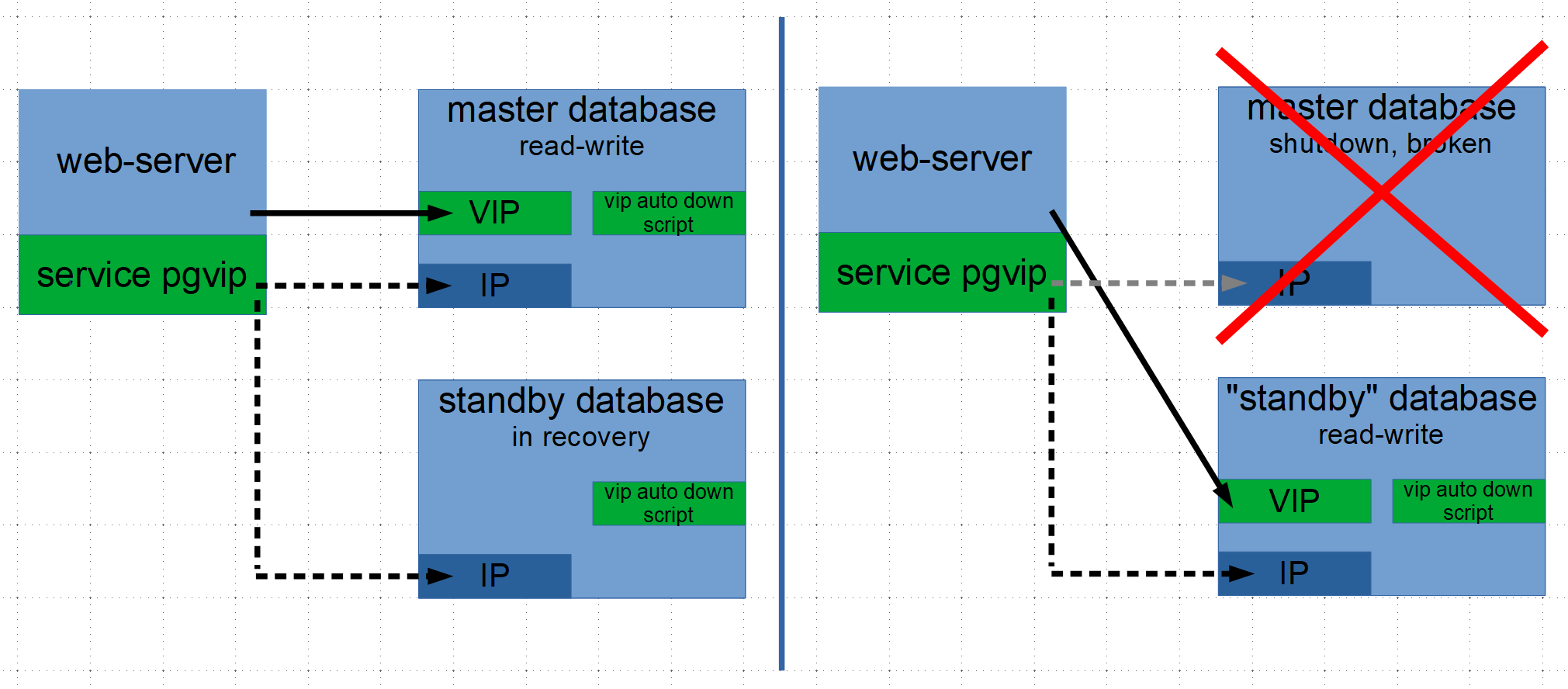

for one web server

for multiple web servers

Technically, the PGVIP service is implemented as a wrapper that executes operating system commands from a configuration file. It was originally developed as a bash script, then rewritten in C language.

Conditions underling the development:

small projects in which installing a cluster (for example, Patroni) is impractical
no requirements for a standby database
the administrator manually creates a standby database and after failover switches it back using standard tools (pg_basebackup)
all commands are customizable; the administrator can run any command on the command line to check it
direct connection to the master database without intermediate layers, VIP is activated (up) on the network interface with a physical address
compilation with one command without configuration and libraries
actions are performed only depending on the current state, this allows to avoid saving information about the state of databases and not synchronizing web servers

more details in the section Important qualities

Main actions performed by the pgvip service:

checking the availability of the master database and the lag of the standby database, the status of the virtual IP address (up/down)
managing a virtual IP address, running a script to automatically turn it off (necessary if the connection is lost)
activation (promotion) of a standby database and transfer of a virtual IP address

more details in the section Actions

Status (pgvip status)

[root@web-server ~]# pgvip status
status: SUCCESS (duration: 0 00:00:32)

+---------+--------------+-------------------------+---------------+---------------+
| Role    | IP address   | Database state          | 192.168.56.10 | VIP auto down |
+---------+--------------+-------------------------+---------------+---------------+
| master  | 192.168.56.1 | read-write              | up on enp0s3  | executing     |
| standby | 192.168.56.2 | in recovery, lag 0 min. | down          | executing     |
+---------+--------------+-------------------------+---------------+---------------+


[root@web-server ~]# pgvip status
status: ERROR (duration: 0 00:00:14, cause: master db is not read-write)

+---------+--------------+-------------------------+---------------+---------------+
| Role    | IP address   | Database state          | 192.168.56.10 | VIP auto down |
+---------+--------------+-------------------------+---------------+---------------+
| master  | 192.168.56.1 | not available           | not available | not available |
| standby | 192.168.56.2 | in recovery, lag 0 min. | down          | executing     |
+---------+--------------+-------------------------+---------------+---------------+


[root@web-server ~]# pgvip status
status: STANDBY_PROMOTED (duration: 0 00:00:06)

+---------+--------------+----------------+---------------+---------------+
| Role    | IP address   | Database state | 192.168.56.10 | VIP auto down |
+---------+--------------+----------------+---------------+---------------+
| master  | 192.168.56.1 | not available  | not available | not available |
| standby | 192.168.56.2 | read-write     | up on enp0s3  | executing     |
+---------+--------------+----------------+---------------+---------------+

System journal (journalctl -fu pgvip or tail -f /var/log/pgsuite/pgvip.log)

[root@web-server ~]# journalctl -fu pgvip
Feb 08 09:49:17 web-server systemd[1]: Started pgvip (PostgreSQL master-standby auto failover).
Feb 08 09:49:17 web-server systemd[1]: Starting pgvip (PostgreSQL master-standby auto failover)...
Feb 08 09:49:17 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      thread started, thread_id: 2718
Feb 08 09:49:17 web-server pgvip[2713]: INFO  ADMINISTRATION       thread started, thread_id: 2719
Feb 08 09:49:17 web-server pgvip[2713]: INFO  ADMINISTRATION       binded to unix socket "/tmp/.s.PGVIP.0"
Feb 08 09:49:17 web-server pgvip[2713]: INFO  ADMINISTRATION       listening
Feb 08 09:49:17 web-server pgvip[2713]: INFO  CHECKER_MASTER_DB    thread started, thread_id: 2714
Feb 08 09:49:17 web-server pgvip[2713]: INFO  CHECKER_MASTER_VIP   thread started, thread_id: 2715
Feb 08 09:49:17 web-server pgvip[2713]: INFO  CHECKER_STANDBY_DB   thread started, thread_id: 2716
Feb 08 09:49:17 web-server pgvip[2713]: INFO  CHECKER_STANDBY_VIP  thread started, thread_id: 2717
...
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_DB    PGSUITE-905 OS command executed with error (errno: 124)
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_DB    command:
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_DB    timeout 5 ssh 192.168.56.1 "su - postgres -c "psql -Aqtc 'select pg_is_in_recovery() or pg_current_xact_id() is null, extract(epoch from now()-pg_last_xact_replay_timestamp())'""
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_DB    output:
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_DB
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_VIP   PGSUITE-905 OS command executed with error (errno: 124)
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_VIP   command:
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_VIP   timeout 5 ssh 192.168.56.1 "flock /tmp/pgvip.time -c 'date +%s > /tmp/pgvip.time' ; flock -n /tmp/pgvip.vip_auto_down -c '' ; echo -n $?, ; ip address show | awk '/ inet 192.168.56.10\// {print $NF}'"
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_VIP   output:
Feb 08 09:50:15 web-server pgvip[2713]: WARN  CHECKER_MASTER_VIP
...
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing action "action_standby_db_promote"
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      condition: (time_now()-status.value_time)>g_time_standby_promote_delay_int && status.master_db_state!=G_DB_STATE_READ_WRITE && status.standby_db_state==G_DB_STATE_IN_RECOVERY && status.standby_db_lag<=g_time_standby_allowable_lag_int
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      status: ERROR (duration: 0 00:00:41, cause: master db is not read-write)
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+-------------------------+---------------+---------------+
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | Role    | IP address   | Database state          | 192.168.56.10 | VIP auto down |
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+-------------------------+---------------+---------------+
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | master  | 192.168.56.1 | not available           | not available | not available |
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | standby | 192.168.56.2 | in recovery, lag 0 min. | down          | executing     |
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+-------------------------+---------------+---------------+
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing command:
Feb 08 09:50:56 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      timeout 5 ssh 192.168.56.1 "ip address del 192.168.56.10/24 dev `ip address show | awk '/ inet 192.168.56.10\// {print $NF}'`"
Feb 08 09:50:59 web-server pgvip[2713]: WARN  ACTION_EXECUTOR      PGSUITE-905 OS command executed with error (errno: 255)
Feb 08 09:50:59 web-server pgvip[2713]: WARN  ACTION_EXECUTOR      output:
Feb 08 09:50:59 web-server pgvip[2713]: WARN  ACTION_EXECUTOR
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing command:
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      timeout 5 ssh 192.168.56.2 "su - postgres -c "\$(pg_config --bindir)/pg_ctl promote -W -D \$(psql -Aqtc 'show data_directory')""
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      output:
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      server promoting
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      command executed successfully
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing command:
Feb 08 09:50:59 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      timeout 5 ssh 192.168.56.2 "ip address add 192.168.56.10/24 dev `ip address show | awk '/ inet 192.168.56.2\// {print $NF}'`"
Feb 08 09:51:00 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      output:
Feb 08 09:51:00 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:51:00 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      command executed successfully
Feb 08 09:51:00 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      action "action_standby_db_promote" executed successfully
...
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing action "action_master_db_break"
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      condition: status.master_db_state==G_DB_STATE_READ_WRITE && status.standby_db_state==G_DB_STATE_READ_WRITE
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      status: STANDBY_PROMOTED (duration: 0 00:01:25)
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+----------------+---------------+---------------+
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | Role    | IP address   | Database state | 192.168.56.10 | VIP auto down |
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+----------------+---------------+---------------+
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | master  | 192.168.56.1 | read-write     | down          | executing     |
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      | standby | 192.168.56.2 | read-write     | up on enp0s3  | executing     |
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      +---------+--------------+----------------+---------------+---------------+
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      executing command:
Feb 08 09:52:29 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      timeout 5 ssh 192.168.56.1 "su - postgres -c "psql -c 'alter system set listen_addresses=pgvip_broken'" ; ps -e | awk '$4=="postmaster" || $4=="postgres" {print $1}' | xargs -r kill -9"
Feb 08 09:52:30 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      output:
Feb 08 09:52:30 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      ALTER SYSTEM
Feb 08 09:52:30 web-server pgvip[2713]: INFO  ACTION_EXECUTOR
Feb 08 09:52:30 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      command executed successfully
Feb 08 09:52:30 web-server pgvip[2713]: INFO  ACTION_EXECUTOR      action "action_master_db_break" executed successfully
